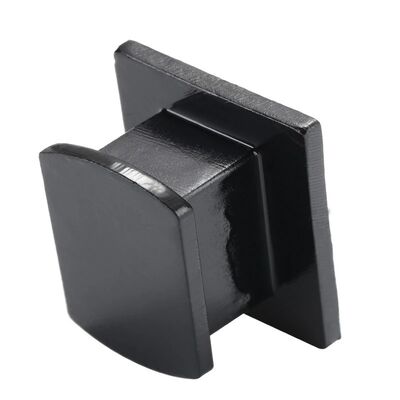

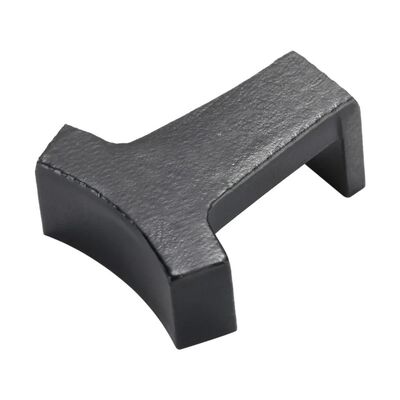

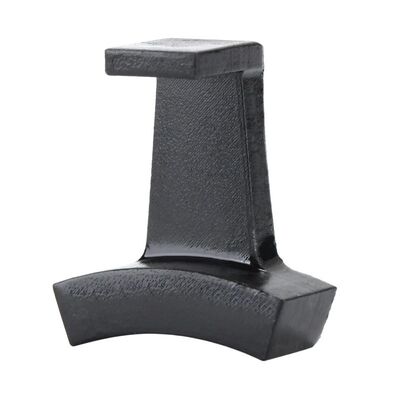

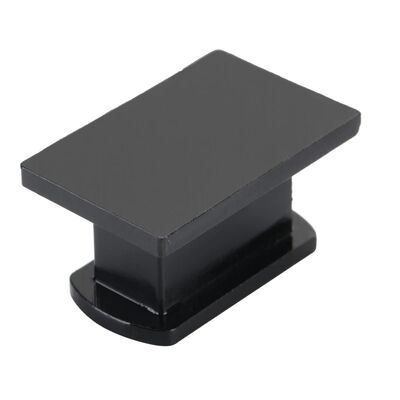

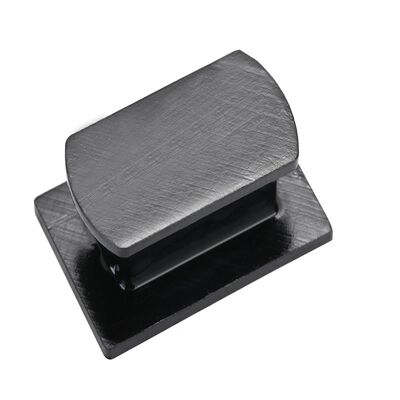

Custom SMC Magnetic Parts | 3D Flux Path Optimization & High Power Density for High-Efficiency Motors
| 起源の場所 | 中国 |
|---|---|
| 証明 | ISO/TS16949:2008 |
| 最小注文数量 | 5000 |
| 価格 | 1-10$ |
| 受渡し時間 | 30日 |
| 支払条件 | T/T |
| 供給の能力 | 1 か月あたりの 2000000 部分 |
商品の詳細
| 形 | カスタマイズされた | 許容範囲 | ±10% |
|---|---|---|---|
| コーティング | 絶縁層 | 品質システム | ISO/TS16949：2008 |
| 仕様 | すべての形状 |
製品の説明
Engineered SMC Components | 3D Magnetic Flux Architecture & High Power Density for Efficient Motors
Soft Magnetic Composites (SMC) represent an innovative solution for enhancing motor performance and design across various industries. Next-generation motors are increasingly utilizing SMC materials due to their improved magnetic properties, 3D flux path capabilities, and custom geometry options.
SMC materials consist of iron powder particles coated with an electrically insulating layer, formed into complex shapes through powder metallurgy processes. This manufacturing approach enables three-dimensional magnetic circuit design for optimal performance.
Applications
Automotive Applications
- Traction motors
- Air conditioning compressors
- Pumps (cooling, oil, etc.)
- DC/DC converters
- On-vehicle chargers
Industrial Applications
- Air conditioning compressors
- Ventilation fans
- Solar power systems
- Industrial motor drives
- Off-board battery charging
Advantages
- Compact design - reduced size and weight of components
- High performance - meets highest efficiency requirements
- Excellent cost efficiency - less material required with net shaping production process minimizing waste
- High power density through 3D magnetic flux
- Lower eddy current losses at high frequencies compared to lamination steel
- Complex shape manufacturing capabilities for enhanced product design
- Copper savings, quick response, fast and accurate drive, high-intensity operations
Packaging and Delivery
| Port of Dispatch | Shanghai |
|---|---|
| Selling Units | Single item |
Frequently Asked Questions
We will help you with your order. Usually we ask for the following information:
- Product material, size, grade, surface coating, quantities required. If available, provide a sketch or drawing with dimensions and tolerances
- Delivered magnetized or unmagnetized? Magnetization direction?
- Information on intended application and usage
Can you do OEM and ODM?
OEM and ODM are acceptable. Please inform us of your requirements for reference.
What about the sample lead time and charge?
For OEM or ODM projects, it typically takes 1-2 weeks to calculate charges. For available or in-stock items, samples are shipped within 5-10 days. Final charges depend on your confirmation of the project draft.
How can I place an order?
You can contact us by email with your order details or place orders online.
What's the order procedure?
First, we discuss order and production details via email. Then we issue a Proforma Invoice for your confirmation. Full payment or deposit is required before production begins. Production typically takes 15-25 days for non-stock items. Before completion, we coordinate shipment details and balance payment. After payment settlement, we prepare your shipment.
How can I pay you?
After confirming our PI, we request payment via T/T (HSBC bank), PayPal, or Western Union. L/C, D/A, and D/P are also available.
Can we visit your factory?
Factory visits are highly appreciated. We will send an invitation once your schedule is confirmed.
